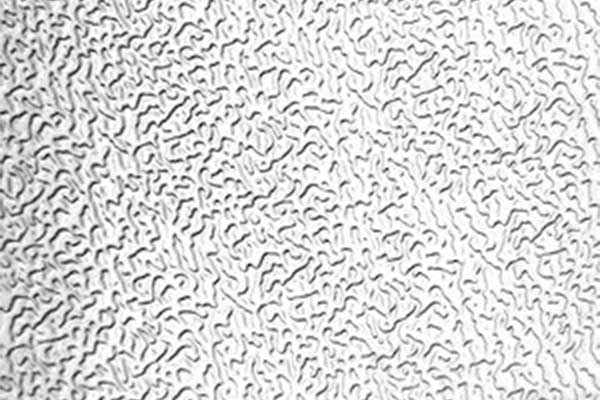

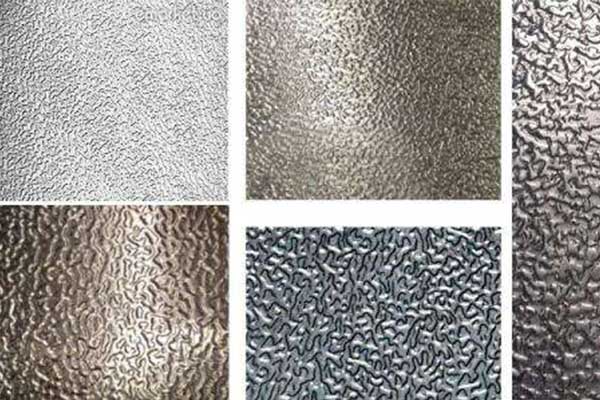

Tread Aluminum Sheet Plate

Description by Manufacturer


Specifications of Tread Aluminum Sheet :

1. Aluminum Sheet and Plate & Panel.
2. Thickness: 0.05-3.0mm
3. Width: 16 - 1250mm
4. Surface: Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other

5. Standards: GB/T 3880-2006, Q/Q 141-2004, ASTM, JIS, EN

Parameters of Aluminum Sheet :

DivisionDescriptionApplicationFeature
1000 SERIES1050, 1060, 1070, 1100, 1200, 1235Utensil, Solar Panel, decoration, Reflecting plate, printing plate, heatproof plate, cookware.Easy to process and weld, resistant to rust, high, conductibility of electricity and heat, low strength
HO, H12, H14, H16, H18, H22, H24, H26,H32, H34, H321, H116, H111 etc.
1xxx series is also known as pure aluminum. Purity can achieve 99.00% above.
3000 SERIES3003, 3004, 3005, 3105, 3A21Utensil, aluminum can, building, chemical equipment, Cellular Phone, air conditioning, refrigerator.20% higher strength than the 1100 series, easily welded and brazed, good anti-rust, ability Non-heat treatable
HO, H12, H14, H16, H18, H22, H24, H26, H32, H34, H321, H116, H111 etc.
The 3xxx series aluminum plate is by manganese as the main component. Content is between1.0 and 1.5. It has a good rust-proof function.
5000 SERIES5005, 5052, 5083, 5754, 5086, 5182Ship board heatproof apparatus, building, Parts of Electronic tools. Automobile Components

Low density, high tensile strength, elongation rate is high.

In the same area, weight is less than other series.

H22, H24, H26, H32, H34, H321, H116, H111 etc.
Main element is magnesium, in the amount between 3-5%.
6000 SERIES6061, 6101, 6082, 6063

IT equipment & facility, Hinge head, Brake piston,
Mould material, motor material, marine parts, machine & plant etc

Easy to process , good corrosion resistance, high toughness and processed without distortion after heat-treatable, superior surface treatment

T5, T6
It mainly contains magnesium and silicon, applies to be against corrosion, oxidizing demanding applications.

8000 SERIES

8011, 8079, 8006, 8090, 8093

Packaging, household, air conditioner, decoration, bottle cap.

Clean, Non-toxic proof, odorless and tasteless, light proof, good malleability etc.
