6061 T6 Aluminum Tread Plate

2026-01-15 08:56:01

Upgrade safety and durability without adding unnecessary weight. 6061-T6 aluminum tread plate combines the proven strength of 6061 alloy with a raised tread pattern for enhanced grip, impact resistance, and long service lifeideal for industrial floors, vehicle step surfaces, toolboxes, ramps, and marine environments.

Quick Overview

• Alloy/Temper: 6061-T6
• Feature: Raised tread pattern improves traction and hides scuffs
• Benefits: Lightweight, corrosion resistant, strong, easy to machine and fabricate
• Common names: Aluminum tread plate, aluminum diamond plate, aluminum checker plate

Parameters (Specifications)

Note: Exact availability can vary by stock. Custom cutting and thickness/size options are supported.

Material & Mechanical

• Alloy: AA 6061
• Temper: T6 (solution heat-treated & artificially aged)
• Key properties: High strength-to-weight ratio, good fatigue performance, excellent machinability

Product Form

• Type: Aluminum tread plate sheet/plate
• Surface: Bright/industrial finish with raised pattern (commonly 5-bar/diamond style)
• Thickness range (typical): 1.0 mm 12.0 mm (customizable)
• Sheet width (typical): 1000 mm / 1220 mm / 1250 mm (customizable)
• Length (typical): 2000 mm / 2440 mm / 3000 mm (customizable)
• Tolerance: Standard industry tolerances; tighter tolerances available upon request

Processing Options

• Cutting: Shearing, sawing, laser/waterjet (depending on thickness)
• Fabrication: Drilling, milling, bending (with proper tooling/radius), welding (6061 is weldable)
• Protection: PVC film available to reduce handling scratches

Purpose (What Its Used For)

6061-T6 tread plate is chosen when you need structural-grade strength plus slip resistance.

Typical Applications

• Industrial flooring & walkways: Platforms, stair treads, mezzanines, catwalks
• Transportation: Truck beds, trailer floors, step panels, ambulance & service vehicles
• Marine & outdoor: Dock surfaces, boat steps, coastal equipment panels
• Fabrication projects: Toolboxes, protective covers, kick plates, machine guards
• Public/Commercial: Maintenance access areas, ramps, utility rooms

Packaging & Shipping

We package to protect the tread pattern and prevent edge damage during transit.

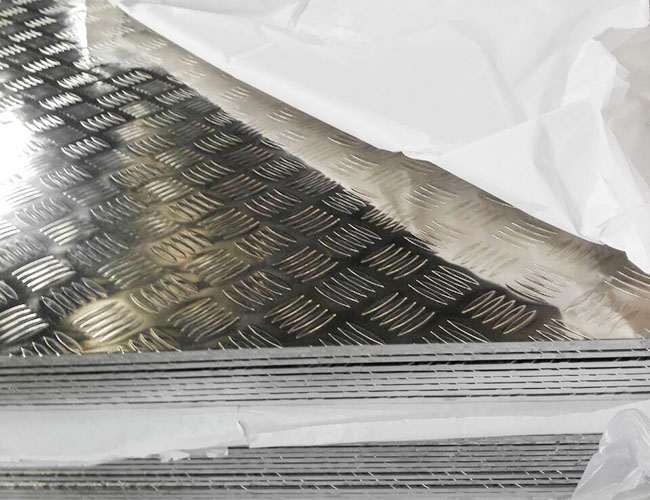

• Standard packaging: Waterproof paper + protective film (optional) + corner protection
• Outer packing: Strong wooden pallet/wooden case, steel strapping reinforcement
• Labeling: Alloy, temper, thickness, size, heat/lot number for traceability
• Shipping forms: Sheets or custom-cut blanks; mixed sizes can be palletized on request

Advantages (Why Choose 6061-T6 Tread Plate)

1. High strength for demanding use 6061-T6 is widely used in structural applications where softer alloys may deform.

2. Anti-slip safety with tread pattern Raised bars/diamonds improve grip and help reduce slip risk in wet or dusty areas.

3. Corrosion resistance for long life Performs well in outdoor and many chemical-exposure environments (application-dependent).

4. Lightweight efficiency Easier handling, faster installation, and reduced vehicle weight compared with steel.

5. Clean, professional finish The pattern helps hide scratches and weargreat for high-traffic surfaces.

6. Fabrication-friendly Readily cut, drilled, and machined; weldable for frames and assemblies.

FAQ

1) Is 6061-T6 tread plate good for outdoor or marine use?

Yes. 6061-T6 offers strong corrosion resistance for many outdoor environments. For highly saline/continuous marine exposure, proper finishing and maintenance are recommended; in some cases, 5xxx series may be considered depending on the application.

2) Whats the difference between tread plate, diamond plate, and checker plate?

They refer to the same style of product: an aluminum plate with a raised pattern for traction and durability. Pattern names vary by region and supplier.

3) Can I order custom thickness, width, and length?

Yes. We support custom cutting and can supply common sheet sizes or tailored blanks based on your drawings/requirements.

4) Does the tread pattern count in the thickness?

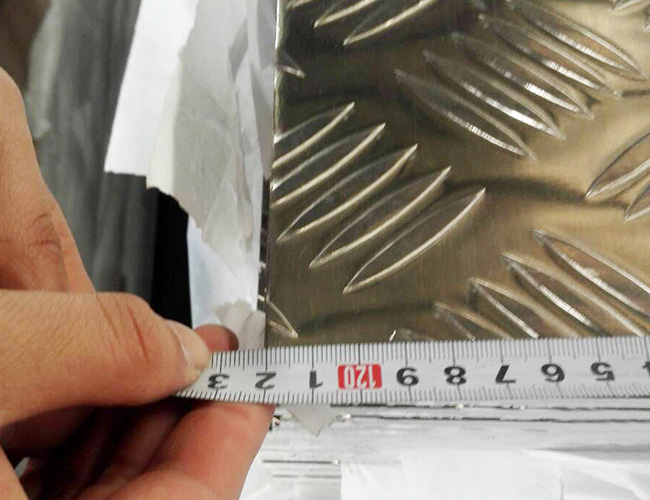

Thickness is commonly specified as base thickness (excluding the raised pattern). If you need total thickness including tread height, tell us your requirement and well confirm.

5) Can 6061-T6 tread plate be welded?

Yes, 6061 is weldable. Note that welding can reduce strength in the heat-affected zone; design considerations or post-weld treatment may be needed for critical structural parts.

6) What surface protection is available?

We can apply PVC protective film to help prevent scratches during processing and installation.

Request a Quote

Send your required thickness, sheet size, quantity, and application, and well recommend the best 6061-T6 aluminum tread plate option with lead time, packaging preference, and cutting plan.
