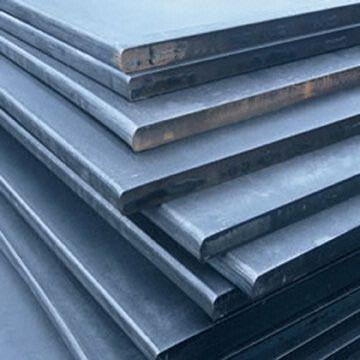

3003 aluminum sheet
3003 aluminum sheet is a medium strength aluminum
alloy with very good resistance to atmospheric corrosion and very good weldability as well as good cold formability. It has better mechanical properties, especially at elevated temperatures It is approximately 20% stronger than 1100 series aluminium.
Alloy: 3003
Temper: O, H111, H112, H12,H14, H16, H18, H22, H24, H26
Thickness: 0.2mm--200mm
With: 500mm--2000mm
Length: 1000mm--12000mm
Surface: Mill finish, Bright finish, paper interleaved, one side film, both sides film.
3003 Aluminum sheet Chemical Composition
| Alloy No. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | 0 | 0 | 0.10 | 0 | 0.20 | REMAIN |
3003 aluminum sheet properties by temper (typical)
| Products | Type | Temper | Thickness(mm) | Width(mm) | Length（mm） |
| 3003 Aluminium sheet | Painted, Bare, Mill Finish Tread plate | O H14 H16 H18 | 0.2-4.5 | 100-2600 | 500-16000 |
| 0.02-0.055 | 100-1600 | Coil | |||
| 0.8-7.0 | 100-2600 | 500-16000 |
3003 Aluminum sheet Mechanical Properties
| Material | Condition | Tensile Strength (ksi min) | Yield Strength (ksi min) | Elongation % in 2" 0.064 sheet | Min 90° Cold Bend Radius for 0.064" Thick |
| 3003-0 sheet 0.064" thick | 3003-0 | 14-19 | 5 | 25 | 0 |
| 3003-H12 sheet 0.064" thick | 3003-H12 | 17-23 | 12 | 6 | 0 |
| 3003-H14 sheet 0.064" thick | 3003-H14 | 20-26 | 17 | 5 | 0 |
| 3003-H16 sheet 0.064" thick | 3003-H16 | 24-30 | 21 | 4 | 1/2 - 1 1/2 T |
| 3003- sheet 0.064" thick | 3003-H18 | 27 min | 24 | 4 | 1 1/2 -3T |
3003 aluminum sheet Packing
Packing Details : Standard export package.
Aluminium Sheet of packaging meet the export standard. Plastic film and brown paper can be covered at customers’ need. wooden case or wooden pallet is adopted to protect products from damage during the delivery.
